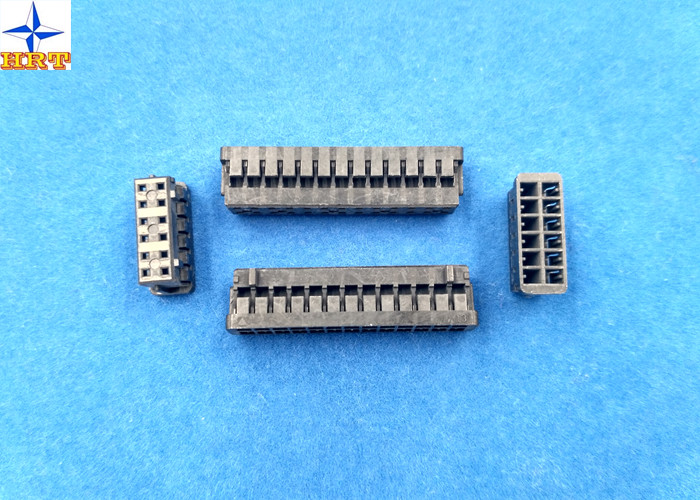

Dual Row 2.00mm Pitch for HRS DF11 Connector Wire To Board Connectors Crimping Housing

Dual Row 2.00mm Pitch for HRS DF11 Connector Wire To Board Connectors Crimping Housing

    • Dual Row 2.00mm Pitch for HRS DF11 Connector Wire To Board Connectors Crimping Housing
    • Dual Row 2.00mm Pitch for HRS DF11 Connector Wire To Board Connectors Crimping Housing
    • Dual Row 2.00mm Pitch for HRS DF11 Connector Wire To Board Connectors Crimping Housing
  • Dual Row 2.00mm Pitch for HRS DF11 Connector Wire To Board Connectors Crimping Housing

    جزئیات محصول:

    Place of Origin: Dongguan, China(mainland)
    نام تجاری: HRT
    گواهی: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2211H2XNP

    پرداخت:

    Minimum Order Quantity: 5000 pcs
    قیمت: negotiated
    Packaging Details: Bag with outside carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Color: white Pitch: 2.00mm
    Material: PA66 Flammability: UL94V-0
    Wire range: AWG28# to 22# Row: dual
    برجسته:

    Pcb To Wire Connectors,Board To Wire Connectors

    ,

    Board To Wire Connectors

    Dual Row 2.00mm Pitch Connector Wire To Board Connectors Crimping Housing



    1, The specification of the product including basic size information, electrical and mechanical properties.



      Basic size information
    Suitable terminals A2211 series
    Mating lock without
    Wire Termination Method crimping
    Circuits 4 to 40 pins
    Wire Insulation Diameter  1.40mm Max.
    Mounting side standard on-Board
    Terminals material phosphor bronze; tin-plated finish
    Terminal handling method E-stamping before tin-plated

                                                              Electrical properties
    Current Rating 2A AC, DC
    Voltage Rating 250V AC, DC
    Contact Resistance 30mΩ Max
    Insulation Resistance 1000mΩ min
    Withstanding Voltage 800V AC/minute

                                                              Mechanical properties
    Operating temperature range -25℃ to 85 ℃
                               Other information please kindly check the following picture.



    2, Related drawing and report



    Dual Row 2.00mm Pitch for HRS DF11 Connector Wire To Board Connectors Crimping Housing

    Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#22 4.0kgf (Min)
    AWG#24 3.0kgf (Min)
    AWG#26 2.0kgf (Min)
    AWG#28 1.0kgf (Min)
    AWG#30 0.8kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.50kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.50kgf (Min.)
    5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
    5-7 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-8 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)



    Actuator Insertion/Withdrawal Force

    [Unit : kgf]

    Circuits At Initial Circuits At Initial
    Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
    Single 0.50 0.05 2x 11 5.40 2.40
    2x02 1.40 0.50 2x 12 5.80 2.60
    2x03 1.80 0.80 2x 13 6.20 2.80
    2x04 2.20 1.00 2x 14 6.60 3.00
    2x05 2.60 1.20 2x 15 7.00 3.20
    2x06 3.00 1.40 2x 16 7.40 3.40
    2x07 3.40 1.60 2x17 7.80 3.60
    2x08 3.80 1.80 2x18 8.20 3.80
    2x09 4.20 2.00 2x19 8.60 4.00
    2x10 5.00 2.20 2x20 9.00 4.20


    3, Main customer

    Our product are developed for PDP, LCD, or small electronics equipment. The parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare etc because of its'  low NPL ratio. By the way, the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.

    Dual Row 2.00mm Pitch for HRS DF11 Connector Wire To Board Connectors Crimping Housing



    4, Our service



    MOQ: If have stock, according to the smallest package. If not, according to the produce MOQ.



    R&D ability:ODM&OEM is avaiable. We also can help you design molds and produce products.



    Delivery time: 5 to 8 days according to your order amount.



    Quality Control: Original connector or replace connector we'll be 100% inspected before

    dispatching.



    Package:PE Bag or Nylon Bag with Carton or as required
