اتصال سیم به برد JST PH بدون قفل محفظه سیم پیچ 2.0 میلی متری

کیفیت خوب اتصالات سیم به برد برای فروش
کیفیت خوب اتصالات سیم به برد برای فروش
I could not believe the product was delivered today, that was quick. Yes, it does fit the board socket as intended.

—— Craig

The flexible MOQ & fast delivery makes me impressive

—— Oleg

the factory is wonderful, it's very clean & tidy, well done in 5S management.

—— Greg Cho

The product are wonderful. The sample is delicered very fast.

—— Peter Svedmyr

چت IM آنلاین در حال حاضر

اتصال سیم به برد JST PH بدون قفل محفظه سیم پیچ 2.0 میلی متری

چین اتصال سیم به برد JST PH بدون قفل محفظه سیم پیچ 2.0 میلی متری تامین کننده
اتصال سیم به برد JST PH بدون قفل محفظه سیم پیچ 2.0 میلی متری تامین کننده اتصال سیم به برد JST PH بدون قفل محفظه سیم پیچ 2.0 میلی متری تامین کننده اتصال سیم به برد JST PH بدون قفل محفظه سیم پیچ 2.0 میلی متری تامین کننده

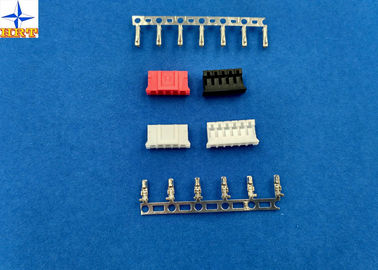

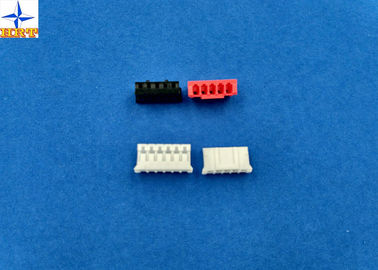

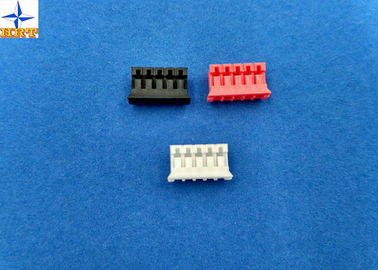

تصویر بزرگ :  اتصال سیم به برد JST PH بدون قفل محفظه سیم پیچ 2.0 میلی متری

جزئیات محصول:

Place of Origin: Dongguan, China(mainland)
نام تجاری: HRT
گواهی: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A2001H-NP

پرداخت:

Minimum Order Quantity: 5000 pcs
قیمت: Negotiated
Packaging Details: Bag with outside carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 28 million pcs per month
توضیحات محصول جزئیات
دسته بندی: محفظه های چین دار ویفر مناسب: سری A2001
مواد: PA66 محدوده سیم: AWG30# تا 26#
اشتعال پذیری: UL94V-0 قطر عایق سیم: حداکثر 1.30 میلی متر
برجسته:

اتصالات PCB به سیم

,

اتصالات برد به سیم

,

اتصال سیم به برد PH Crimp



1, The specification of this product



From the following table to choose the right parts from us.



Basic size information
Suitable terminals A2001T  series
Application Signal, wire-to-board
Pitch 2.00mm
Color White
Row Single
Lock to mating part Without
Circuits 2 to 18 pins(position)
Gender Receptacle
Terminal materials Phosphor bronze material, tin-plated or gold-flash finish

                                                       Electrical properties
Current Rating 2.0 A AC, DC
Voltage Rating 100 V AC, DC
Contact Resistance 10 mΩ Max
Insulation Resistance 1000 MΩ min
Withstanding Voltage 800V AC/minute

                                                        Mechanical properties
Temperature range -25℃ to 85 ℃
                           Other information please kindly check the following picture.



2, Related drawing and report



Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.

اتصال سیم به برد JST PH بدون قفل محفظه سیم پیچ 2.0 میلی متری

Mechanical Performance



Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7-2
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#24 3.0kgf (Min)
AWG#26 2.0kgf (Min)
AWG#28 1.0kgf (Min)
AWG#30 0.8kgf (Min)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.00kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.50kgf (Min.)
5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.00kgf (Min.)
5-6 Latch Yield Strength

Mate connectors and pull apart until both latches break at the speed rate of

25±3mm / minute

3.00kgf (Min.)
5-7 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
5-8 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

Discontinuity 1 μsec.(Max.)

5-9 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)




3,  Product's Features

This is a thin, low-profile 2.0mm pitch connector 8.0mm in height after mounting and 4.5mm in width. It is designed to meet the demand for high-density connection of internal wires to printed circuit boards. It is
compact, highly reliable and low in cost.

• Reliable contact
• Fully shrouded header
• Printed circuit board retention mechanism
• Surface mount model (SMT)



4, Delivery way



We have good cooperation with world famouse delivery company, and the can offer us VIP service and favorable price. It's sure that your purchasement can be cost down via our strength.
