| Place of Origin: | Dongguan, China(mainland) |
| نام تجاری: | HRT |
| گواهی: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2004WV/WR |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| قیمت: | Negotiated |
| Packaging Details: | Bag with outside carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 1.5 million pcs per month |
| Category: | Wafer connector | Application: | Dual, wire-to-board |
|---|---|---|---|
| Pitch: | 2.00mm | Wire range: | AWG22# to 28# |
| Lock to mating part: | Without | Gender: | Male |
| برجسته: | Circuit Board Connectors,Wire To Board Connector,Wire To Board Connector |
||

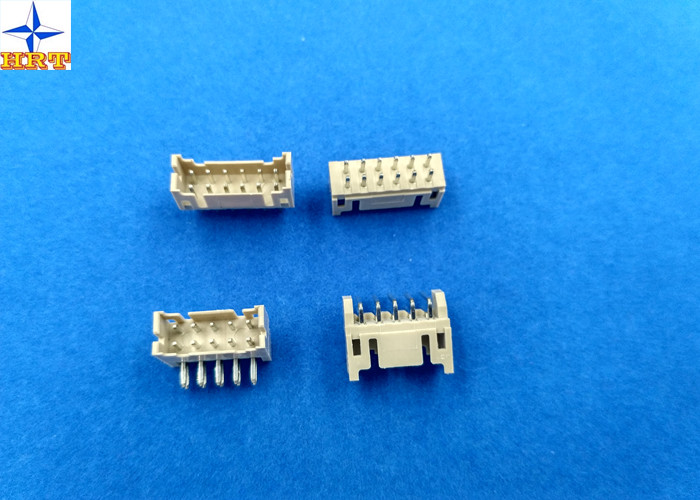

Dual Wafer Connector 2.0mm Right Angle Or Vertical Type With Tin - Plated UL94V-0
1, The details for product
| Basic size information | |||
| Pin materials of wafer | Brass or tin-plated | ||
| Suitable housing | A2004H series | ||
| Material | PA66 | ||
| Color | White | ||
| Row | Dual | ||
| Flammability | UL94V-0 | ||
| Circuits | 4 to 40/48 pins(position) | ||
| Wire insulation diameter | 1.50mm Max. | ||
| Terminal materials | Phosphor bronze material, tin-plated or gold-flash finish | ||
| Electrical properties | |||
| Current Rating | 3.0 A AC, DC | ||
| Voltage Rating | 250 V AC, DC | ||
| Contact Resistance | 10 mΩ Max | ||
| Insulation Resistance | 1000 mΩ min | ||
| Withstanding Voltage | 800V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.
3, Application fied of these product
This product is developed for PDP, LCD, or small electronics equipment. It will contact wire and PCB circuits effectively and delivering signal or current well. Because we can controll NPL ratio under a very low value, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, etc. You can have a simple way to know this through attached picture.
4, Multiple delivery way and flexible payment.
We cooperated well with world famouse shipping company like DHL, UPS, Fedex and more, they can offer us good service and favorable price. Choose us! Let's connect the world between electronics and business world.
