1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application

چین 1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application تامین کننده
1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application تامین کننده 1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application تامین کننده 1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application تامین کننده

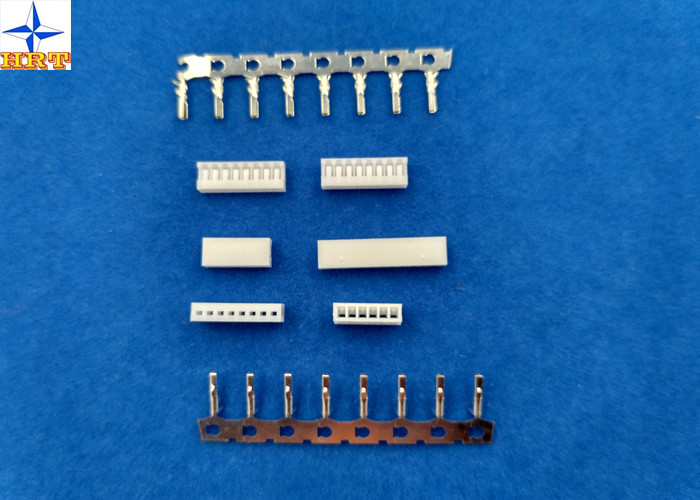

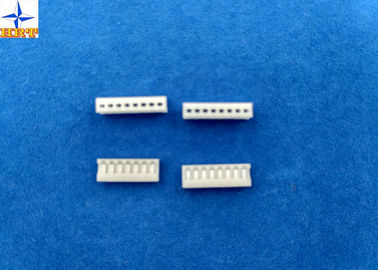

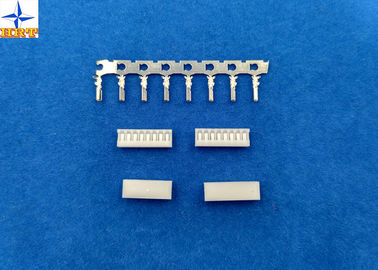

تصویر بزرگ :  1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application

جزئیات محصول:

Place of Origin: Dongguan, China(mainland)
نام تجاری: HRT
گواهی: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: B1259HR-NP

پرداخت:

Minimum Order Quantity: 5000 pcs
قیمت: USD0.001 to 0.5 per pcs
Packaging Details: Bag with outside carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 28 million pcs per month
توضیحات محصول جزئیات
Category: Crimp Housings Suitable terminals: B1259HR series
PC board mounting direction: Right angle type Wire range: AWG32# to 28#
Flammability: UL94V-0 Row: Single
برجسته:

Circuit Board Connectors,Wire To Board Connector

,

Wire To Board Connector

1, The specification of the product including basic size information, electrical and mechanical properties.



  Basic size information
Color White
Pitch 1.25mm
Contacts type Right angle
Material PA66
Category Crimp Housings
Application Signal
Circuits 2 to 15pins
Wire insulation diameter  1.00mm Max.
Terminal material Phosphor Bronze
Finish terminal Tin-plated

                                                          Electrical properties
Current Rating 1A AC, DC
Voltage Rating 125V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 100MΩ min
Withstanding Voltage 500V AC/minute

                                                          Mechanical properties
Temperature range -25℃ to 85 ℃
                           Other information please kindly check the following picture.







2, Related drawing and report

Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.

1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application




3, Application fied of product

This product is very ideal for VCRs, car stereo system, audio parts and many other consumer oriented electronics product. It is with strong structure against external force. And it is wildly seted in most of household appliance, computer, communication device. We also can controll defective rate under a low value, so our prodcut are welcomed and trusted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.





4, Our comprehensive service

We can offer better service for you in order to have a long and two-win business relationship, also to build personal friendship.
