Single Row 2.5mm PCB Board-in Connectors Brass Contacts Side Entry type Crimp Connectors

Single Row 2.5mm PCB Board-in Connectors Brass Contacts Side Entry type Crimp Connectors

    • Single Row 2.5mm PCB Board-in Connectors Brass Contacts Side Entry type Crimp Connectors
    • Single Row 2.5mm PCB Board-in Connectors Brass Contacts Side Entry type Crimp Connectors
    • Single Row 2.5mm PCB Board-in Connectors Brass Contacts Side Entry type Crimp Connectors
  • Single Row 2.5mm PCB Board-in Connectors Brass Contacts Side Entry type Crimp Connectors

    جزئیات محصول:

    Place of Origin: Dongguan, China(mainland)
    نام تجاری: HRT
    گواهی: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: B2512HR-NP

    پرداخت:

    Minimum Order Quantity: 5000 pcs
    قیمت: USD0.001 to 0.5 per pcs
    Packaging Details: Bag with outside carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Category: Board-in connectors Suitable terminals: B2512 series
    PC board mounting direction: Side entry type Wire range: AWG22# to 28#
    Flammability: UL94V-0 Row: Single



    2.50mm pitch board-in housing vertical mounting top entrance PCB board connectors



    1, The specification of the product including basic size information, electrical and mechanical properties.



    Ordering code: B2512HV-NP or B2512HR-NP

    Color: white
    Pitch: 2.50mm

    Material:PA66

    Circuits: 2 to 15pins

    Terminal material:Brass
    Finish terminal: tin-plated

    Wire insulation diameter: 1.00mm Max.
    Contacts type: Top entry type or Side entry type



    Current rating: 3A AC, DC
     Voltage rating: 250V AC, DC
    (including temperature rise in applying electrical current)

    Contact Resistance 20mΩ Max
    Insulation resistance: 1,000M Ω min.
     Withstanding voltage: 800V AC/minute

    Temperature range: -25˚C to +85˚C
    Applicable wire: AWG #28 to #22
    Applicable PC board thickness: 1.2mm, 1.6mm





    2, The picture display of these series product

    Drawings:

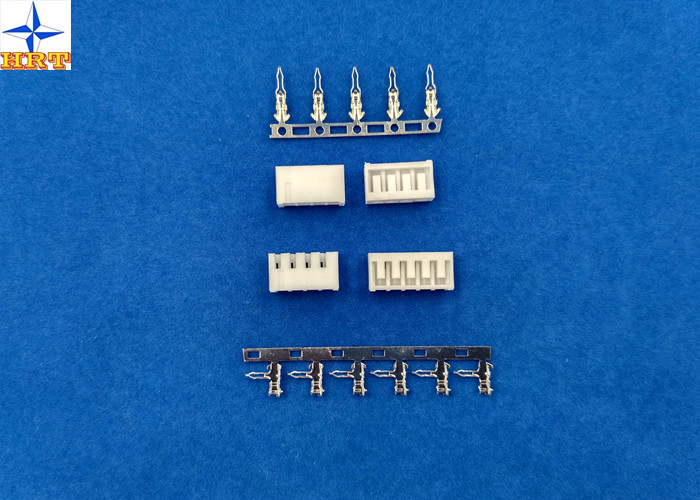

    Single Row 2.5mm PCB Board-in Connectors Brass Contacts Side Entry type Crimp Connectors

    Single Row 2.5mm PCB Board-in Connectors Brass Contacts Side Entry type Crimp Connectors

    Environmental Performance And Others



    Test Description Procedure Requirement
    6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
    6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

    Appearance No Damage.

    Contact Resistance 10mΩ (Max.)

    6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
    6-4 Humidity

    Temperature: 40±2℃

    Relative Humidity : 90~95%

    Duration: 96 hours

    (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

    Appearance No Damage.

    Contact Resistance 10mΩ (Max.)

    Insulation Resistance 100MΩ (Min.)

    Dielectric Withstanding Voltage Must meet 4-3

    6-5 Temperature Cycling

    5 cycles of:

    a) -55℃ 30 minutes

    b) +85℃ 30 minutes

    (Based upon JIS C0025)

    Appearance No Damage.

    Contact Resistance 10mΩ (Max.)

    6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
    6-7 SO2 Gas

    24 hours exposure to 50±5ppm.

    SO2 gas at 40±2℃.

    6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.





    3, Product's features

    This 2.5mm pitch multi-circuit board-in connector meets the needs for high-density mounting on printed circuit boards efficiently and economically. The connector can be used for VCRs, car stereo systems, audio products, and many other consumer-oriented electronic products.

    • Housing lances
    • Secure mounting on printed circuit boards
    • Two types of contacts



    4, Our comprehensive service

    We can offer better service for you in order to have a long and two-win business relationship, also to build personal friendship.
