جزئیات محصول:
پرداخت:
|
| Category: | Crimp housings | Suitable wafer: | A1501W series |
|---|---|---|---|
| Suitable terminals: | A1501T series | Wire range: | AWG22# to 28# |
| Lock to mating part: | Without | Gender: | Female |
| برجسته: | Circuit Board Connections,Pcb Connectors Wire To Board,Pcb Connectors Wire To Board |
||

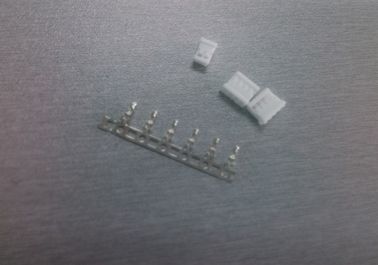

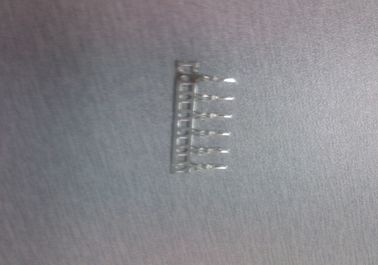

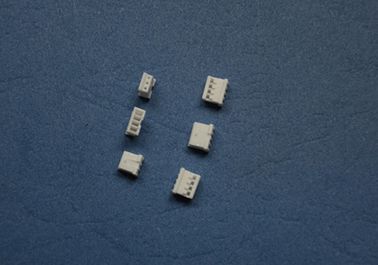

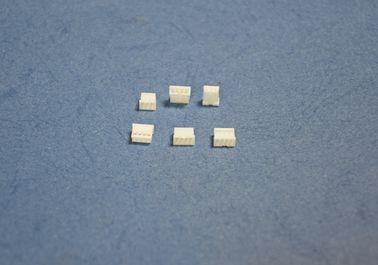

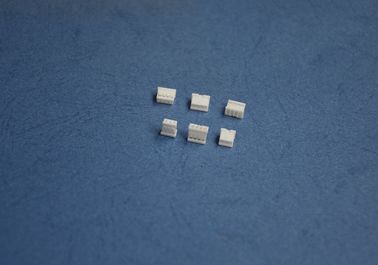

1.50mm Pitch pcb wire to board connector Smt Crimp Housings Without Lock A1501HNP
1, The detailed specification
| Basic size information | |||
| Material | PA66 | ||
| Application | signal, wire-to-board | ||
| Pitch | 1.50mm | ||
| Color | white | ||
| Row | single | ||
| Flammability | UL94V-0 | ||
| Circuits | 2 to 15 pins(position) | ||
| Wire insulation diameter | 1.15mm Max. | ||
| Terminal materials | phosphor bronze, tin-plated | ||
| Electrical characteristic | |||
| Current Rating: | 3.0 A AC, DC | ||
| Voltage Rating | 350 V AC, DC | ||
| Contact Resistance: | 20 mΩ Max | ||
| Insulation Resistance: | 1000 mΩ min | ||
| Withstanding Voltage: | 500V AC/minute | ||
| Mechanical characteristic | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.
3,FAQ
Q: Can we have our own brand packaging? How?
A: Yes,we have designer in house to meet customized packaging requirment, all you have to
do is let us know your idea or demands.
Q: Does your products print exactly the same as original?
A: Compatible products were known for its favourable prices and accurate size as originals.
Q: What is your MOQ for sample order?
A: All size sample orders are welcome.we do understand your idea to increase order
gradually.
Q: What about guarantee?
A: One on one exchange for defectives exceed our guarantee rate.
4, Delivery and payment terms
Please get a direct understanding from the attached pictures, let's do business now!
