|Place of Origin:||Dongguan, China(mainland)|
|Minimum Order Quantity:||5000 pcs|
|Packaging Details:||Bag with outside carton|
|Delivery Time:||5 to 8 working days after payment checked|
|Payment Terms:||TT, Western Union, PayPal, L/C|
|Supply Ability:||500 K pcs per month|
|Suitable terminals:||A2015T series||Suitable pin header:||A2016 series pin header|
|Mating lock to part:||Without||Wire range:||AWG 26# to 30#|

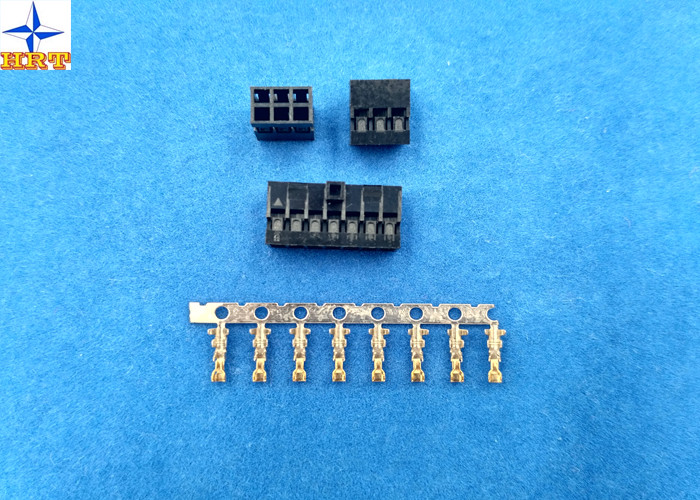

Two Row LVDS Connectors Wire Housing A2016 Series Pin Header 2.0mm Pitch
1, The specification of the product like information of size, electrical and mechanical properties.
|Basic size information|
|Nose No. of A2016H-2XNP||0|
|Nose No. of A2016H-N-2XNP||1|
|Nose No. of A2016H-3N-2XNP||3|
|Wire Termination Method||Crimping|
|Circuits||4 to 60 pins|
|Wire Insulation Diameter||1.30mm Max.|
|Mounting side||Standard on-Board|
|Terminals material||Phosphor bronze; gold-flash finish|
|Current Rating||2A AC, DC|
|Voltage Rating||250V AC, DC|
|Contact Resistance||20mΩ Max|
|Insulation Resistance||1000mΩ min|
|Withstanding Voltage||1000V AC/minute|
|Operating Temperature range||-25℃ to 85 ℃|
|Other information please kindly check the following picture.|
2, Related drawing and report
We wish our engineering drawing and report can help you to get the right parts from us easily.
without nose type
with one nose type
with 3 nose type
|5-1||Actuator Insertion & Withdrawal Force||Insert and withdraw connectors at the speed rate of 25±3mm / minute.||Refer to paragraph 7|
|5-2||Crimping Pull Out Force||Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8)||AWG#26||2.0kgf (Min)|
|5-3||Terminal Insertion Force.||Insert the crimped terminal into the housing.||1.00kgf (Max.)|
|5-4||Terminal/Housing Retention Force.||Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing.||1.00kgf (Min.)|
|5-5||Pin Retention Force||Apply axial push force at the speed rate of 25±3mm / minute||1.00kgf (Min.)|
|5-6||Durability||When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute.||Contact Resistance 40mΩ (Max.)|
Amplitude: 1.5mm P-P
Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.
(Based upon MIL-STD-202 Method 201A)
Appearance No Damage.
Contact Resistance 40mΩ (Max.)
Discontinuity 1 μsec.(Max.)
|5-8||Physical Shock||490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)|
