4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent

جزئیات محصول:

Place of Origin:	dongguan, China(mainland)
نام تجاری:	HRT
گواهی:	ISO9001/ ISO14001/UL/RoHS/REACH
Model Number:	C4255F-T

پرداخت:

Minimum Order Quantity:	75K pcs
قیمت:	Negotiated
Packaging Details:	5K/reel or 4K/reel with outside carton
Delivery Time:	5 to 8 working days after payment checked
Payment Terms:	TT, Western Union, PayPal, L/C
Supply Ability:	100 million pcs per month

اکنون تماس بگیرید

توضیحات محصول جزئیات

Pitch:	4.20mm	wire range:	AWG#22 - #26 or #18 - #22 or #16 - #20 or #14 - #18
Material:	Brass or phospher Bronze	Finish:	Tin-plated
Connector Type:	wire connnector Terminal	Insulation O.D:	3.10mm(Max)
برجسته:	Crimp Terminal Connector,Board In Connector , Board In Connector

1, The specification of the product including basic size information, electrical and mechanical properties.

Basic size information
Termination Interface Style		crimp or compression
Processing methods		E-stamping before tin-plated
Insulation O.D.		3.10mm(Max)
Part No.		C4255F-TBE or C4255F-TBE or C4255F-TBE-H or C4255F-TPE-H or C4255F-TB-TH or C4255F-TP-TH
Application		signal

Electrical properties
Current Rating		9A AC, DC
Voltage Rating		600V AC, DC
Contact Resistance		10mΩ Max
Insulation Resistance		1000MΩ min
Withstanding Voltage		1500V AC/minute

Mechanical properties
Temperature range		-25℃ to 85 ℃
Other information please kindly check the following picture.

2, Related drawing and report

The following pictures are engineering drawing and testing report for your reference, wish these can help you to purchase the ideal and right parts from us. Thank you!

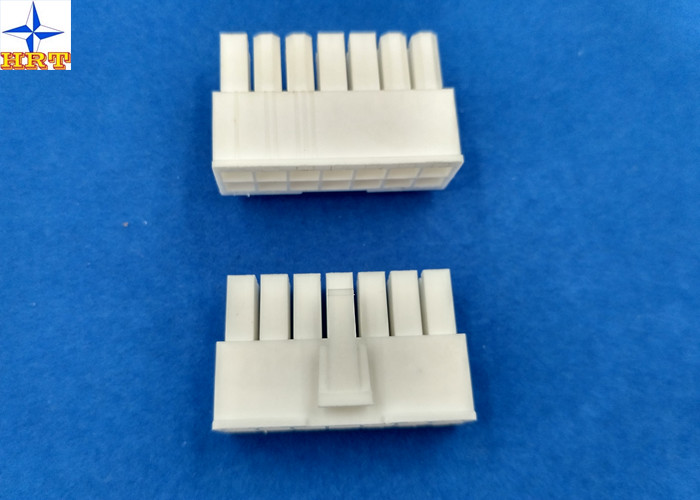

4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent

Test Description		Procedure		Requirement
Actuator Insertion & Withdrawal Force	Insert and withdraw connectors at the speed rate of 25±3mm / minute.		Refer to paragraph 7
Crimping Pull Out Force	Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8)		AWG#14		11.0kgf (Min)
			AWG#16		10.0kgf (Min)
			AWG#18		9.0kgf (Min)
			AWG#20		6.0kgf (Min)
			AWG#22		4.0kgf (Min)
			AWG#24		3.0kgf (Min)
Terminal Insertion Force.	Insert the crimped terminal into the housing.		1.50kgf (Max.)
Terminal/Housing Retention Force.	Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing.		3.00kgf (Min.)
Pin Retention Force	Apply axial push force at the speed rate of 25±3mm / minute		3.00kgf (Min.)
Latch Yield Strength	Mate connectors and pull apart until both latches break at the speed rate of 25±3mm / minute		7.0kgf (Min.)
Panel Mount Retention Force	Insert the housing into panel cut out, push housing opposite the way it was assembled until the locking barbs break at the speed rate of 25±3mm / minute.		16.0kgf (Min.)

3, FAQ

Q:Do you allow multiple design per setup?
A:Yes.We accept OEM/ODM service and allow multiple design per setup.

Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed country, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).

Q: How is the goods packaged ?
A: Usually in PE bads, tube, pipe and with outside carton box.
