جزئیات محصول:
پرداخت:
|

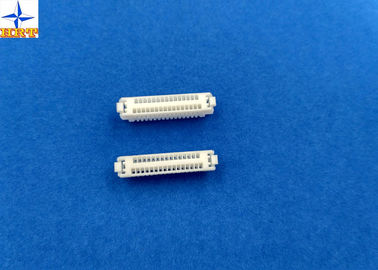

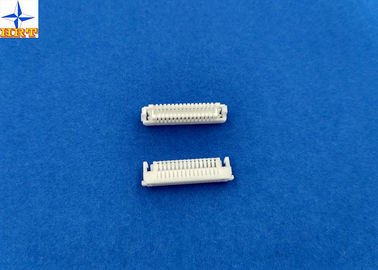

| Category: | Wire housing | Suitable terminal: | A1002T |
|---|---|---|---|
| Material: | Nylon66 UL94V-0 | Wire range: | AWG26# to 28# |
| Gender: | Female | Positions: | 21 or 31 circuits |
| برجسته: | Connector Wire To Board,Pcb To Wire Connectors,Pcb To Wire Connectors |
||
1, Product's specification details
| Basic size information | |||
| Color | White | ||
| Pitch | 1.0mm | ||
| Housing Material | Nylon66 UL94V-0 | ||
| Application | signal, wire to board | ||
| Wire Insulation Diameter | 0.80mm max. | ||
| Terminal processing method | E-stamping before tin-plated or gold-flash | ||
| Electrical properties | |||
| Current Rating | 1A AC, DC | ||
| Voltage Rating | 50V AC, DC | ||
| Contact Resistance | 30mΩ Max | ||
| Insulation Resistance | 100mΩ min | ||
| Withstanding Voltage | 500V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Terminal Insertion Force | 0.50kgf (Max.) | ||
| Terminal/Housing Retention Force | 0.50kgf (Min.) | ||
| Pin Retention Force | 0.50kgf (Min.) | ||
| Other information please kindly check the following picture. | |||
2, Introduction for this series products
Please kindly notice that the A1002 series product, if you can buy this product as a set, the price will be very reasonale and favorable.

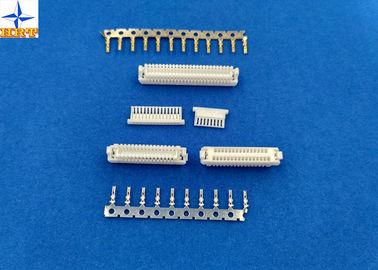

1, Terminals:A1002T(tin-plated flash or gold-flash)
2, Housing: A1002H-NP & A1002HA-2XNP & A1002HA-2XNP new version
3, Relevant engineering drawing and test report
The next attachment is detailed product file for your reference, it will be helpful to you.
Dimension drawing
4, Application fied of our parts
This product are widely used in household appliance, computer, communication device. Because our defective rate is very low, so our parts are accepted by some famouse company which is with prestigious like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free. And you can have a direct cognition from below pictures.
5, Payment terms and delivery way
Multipe and flexible payment terms and delivery way can be available by us, you can know this clearly through below pictures.
