SXH Connector Contact Pitch 2.50mm Brass or phosphor bronze terminals for AWG#22 - 28 wire

کیفیت خوب اتصالات سیم به برد برای فروش
کیفیت خوب اتصالات سیم به برد برای فروش
I could not believe the product was delivered today, that was quick. Yes, it does fit the board socket as intended.

—— Craig

The flexible MOQ & fast delivery makes me impressive

—— Oleg

the factory is wonderful, it's very clean & tidy, well done in 5S management.

—— Greg Cho

The product are wonderful. The sample is delicered very fast.

—— Peter Svedmyr

چت IM آنلاین در حال حاضر

SXH Connector Contact Pitch 2.50mm Brass or phosphor bronze terminals for AWG#22 - 28 wire

چین SXH Connector Contact Pitch 2.50mm Brass or phosphor bronze terminals for AWG#22 - 28 wire تامین کننده
SXH Connector Contact Pitch 2.50mm Brass or phosphor bronze terminals for AWG#22 - 28 wire تامین کننده SXH Connector Contact Pitch 2.50mm Brass or phosphor bronze terminals for AWG#22 - 28 wire تامین کننده SXH Connector Contact Pitch 2.50mm Brass or phosphor bronze terminals for AWG#22 - 28 wire تامین کننده

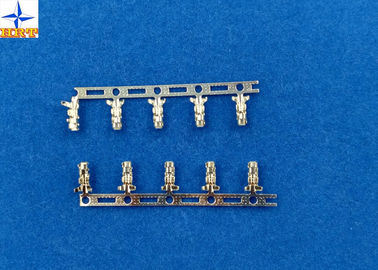

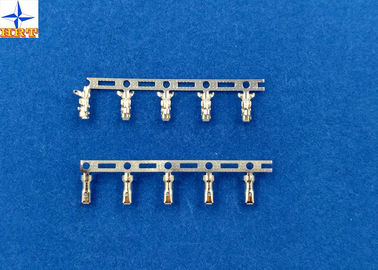

تصویر بزرگ :  SXH Connector Contact Pitch 2.50mm Brass or phosphor bronze terminals for AWG#22 - 28 wire

جزئیات محصول:

Place of Origin: China
نام تجاری: HRT
گواهی: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A2501

پرداخت:

Minimum Order Quantity: 5000 PCS
قیمت: Negotiated
Packaging Details: paper tray with out carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 1000 pcs per day
توضیحات محصول جزئیات
Product Name: A2501-T Terminal Pitch: 2.50mm
wire range: AWG#22#28 Material: Brass or Phosphor Bronze
Finish: Tin-plated Gold-flash Fire-protection rating: UL 94V-0

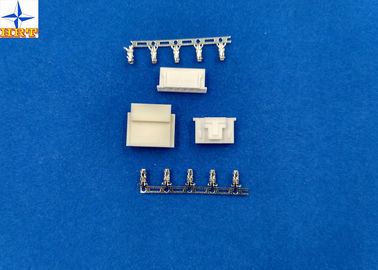

Used in: A2501 series housing
برجسته:

Crimp Wire Connectors,Connector Crimp Terminal

,

Connector Crimp Terminal



Wire to board pitch 2.50mm Brass or Phosphor Bronze wire connector terminal



Description:



1. Terminals are stamped by Brass or Phosphor Bronze, E-Stamping before Tin-plated or Gold-flash ,Tin-plated we calling A2501-TPe, Gold-plated we calling A2501-GPe , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.

2. Terminals' wire range :AWG #22--#28,insulation OD is1.90mm(Max).

3. A2501 series terminal is E-stamping before Tin-plated



Specifications:



Test Description Procedure Requirement

Contact Resistance

Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 10mΩ (Max.)
Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
Dielectric Withstanding Voltage Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.. 5mΩ (Max.)



Electrical characteristic:



Voltage rated 250V AC ,DC
Current rated 3A  AC,DC
Withstand voltage 1000VAC/minute
Insulation resistance 1000MΩ Min
Contact resistance 10mΩ Max
Operating temperature -25°C~85°C



 Drawing:



SXH Connector Contact Pitch 2.50mm Brass or phosphor bronze terminals for AWG#22 - 28 wire



Quality:



The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.



1. Manufactured under strict controls.

2. ISO 9001:2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM for PULSE

7. Active Environmental policy

8. Every module tested 3times (not just batch tested)



Service:

Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .



HRT Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

3. time.

4. Free Samples:10~20 PCS of each part number

5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6. Customer complaint:24-48 hours reply 8D report

7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair

8. kits if customers are not satisfied)
